SHIPBOARD CUSTOM FIBER OPTIC CABLE CONFIGURATIONS

kSARIA excels at providing their customers with customized fiber optic cable assemblies. kSARIA works with their customers to help design and configure shipboard fiber optic cable assemblies to meet their specific needs. Designs include the use of M85045 Mil-spec cable with the M28876 family of connectors.

Designs include single channel, multi-channel and breakout assemblies to interface to a wide variety of LIU’s (light interface unit). kSARIA also offers a complete line of MQJ’s (measurement quality jumpers) for shipboard testing applications.

MEASUREMENT QUALITY JUMPERS (MQJ)

Measurement Quality Jumpers (MQJs) are high quality reference cables designed to provide accurate and consistent test results while testing fiber optic cable assemblies. The U.S. Navy requires that MQJ’s are used to test all shipboard fiber installations as specified in MIL-STD-2042. The Navy has specified numerous different MQJ configurations in NAVSEA drawing 6877804 for various application tests.

kSARIA offers the following NAVSEA approved MQJ part numbers:

NAVSEA Multimode Approved MQJ’s

6877804-01	ST – ST, 50 METER
6877804-03	ST – M29504/14 PIN, 50 METER
6877804-04	ST – M29504/15 SOCKET, 50 METER
6877804-05	ST – ST, 1 METER
6877804-07	ST – 4 CH PLUG, 1 METER
6877804-08	ST – 4 CH RECEPTACLE, 1 METER
6877804-09	ST – 8 CH PLUG, 1 METER
6877804-10	ST – 8 CH RECEPTACLE, 1 METER
6877804-12	ST – 31 CH PLUG, 1 METER
6877804-13	ST – 31 CH RECEPTACLE, 1 METER
6877804-14	ST – LC, 50 METER
6877804-15	ST – LC, 1 METER

Custom MQJ configurations also available. Please call to inquire.

NAVSEA Single Mode Enhanced Approved MQJ’s

6877804-01SME	ST – ST, 50 METER
6877804-03SME	ST – M29504/14 PIN, 50 METER
6877804-04SME	ST – M29504/15 SOCKET, 50 METER
6877804-05SME	ST – ST, 1 METER
6877804-07SME	ST – 4 CH PLUG, 1 METER
6877804-08SME	ST – 4 CH RECEPTACLE, 1 METER
6877804-09SME	ST – 8 CH PLUG, 1 METER
6877804-10SME	ST – 8 CH RECEPTACLE, 1 METER
6877804-12SME	ST – 31 CH PLUG, 1 METER
6877804-13SME	ST – 31 CH RECEPTACLE, 1 METER
6877804-14SME	ST – LC, 50 METER
6877804-15SME	ST – LC, 1 METER

SHIPBOARD CONNECTORS

The M28876 fiber optic connectors are harsh environment fiber optic connectors that are rugged, reliable and cost-effective. They cover the performance requirements for circular, plug and receptacle styles that are for Department of Defense applications and that are compatible with multiple transmission element cables.

Configure your M28876 connector using the key shown below:
M28876/(a)-(b)-(c)-(d)-(e)-(f)-(g)

SHIPBOARD FIBER OPTIC CABLE
Select (a) Connector Type
Connector	Strain Relief (a)

	None	1
	Straight	2
Wall Mount	45°	3
	90°	4
	None
Plug	Straight
	45°	6
	90°
Receptacle, Jam Nut	None
	Straight
	45°	11
	90°

Straight Backshell Assembly Only 27
45° Backshell Assembly Only 28
90° Backshell Assembly Only 29

Select (b) Shell Size and (c) Number of Cavities
Shell Size	(b)	(c)	Number of Cavities
13	B	1	4
15	C	1	8
15	C	2	6
23	F	1	31
23	F	2	18

Select (f): Keying Designator (See Table below)

Select (g): When ordering /1 /6 or /11 connectors that will use a backshell, insert N to omit the unneeded insert retention nut and pressure sleeve. Otherwise leave this blank.

Keying Configurations for MIL-PRF-28876 Fiber Optic Connectors

Select (d) Maximum Allowable Cable Diameter by Shell Size, Inches (mm)
Shell Size 13	Shell Size 15	Shell Size 23	(d)
0.280 – 0.315	0.495 – 0.515	0.768 – 0.866	1
(7.11 – 8.00)	(12.57 – 13.08)	(19.50 – 22.00)
0.305 – 0.346	0.380 – 0.423	0.900 – 1.000	2
(7.75 – 8.80)	(9.65 – 10.74)	(22.86 – 25.40)
	0.423 – 0.465	0.550 – 0.660	3
	(10.75 – 11.81)	(13.97 – 16.76)
	0.305 – 0.346	0.660 – 0.768	4
	(7.75 – 8.80)	(16.76 – 19.50)
	0.347 – 0.379		5
	(8.813 – 9.626)
	0.250 – 0.304		6
	(6.350 – 7.721)

Select (f): Keying Designator (See Table below)

Select (g): When ordering /1 /6 or /11 connectors that will use a backshell, insert N to omit the unneeded insert retention nut and pressure sleeve. Otherwise leave this blank.

Keying Configurations for MIL-PRF-28876 Fiber Optic Connectors

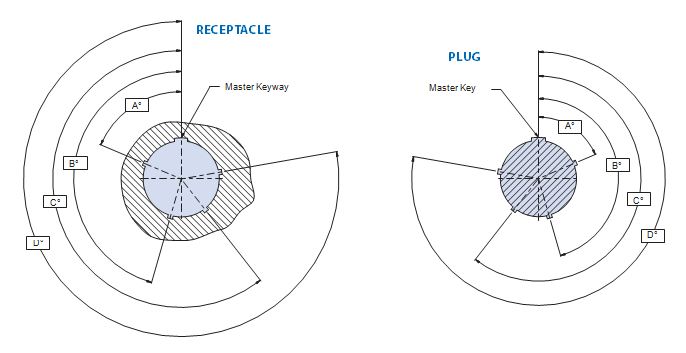

Keying Position
Shell Size	Keying Arrangement Designators	A°	B°	C°	D°
13	0*	–	–	–	–
	1	95	141	208	236
	2	113	156	182	292
	3	90	145	195	252
	4	53	156	220	255
	5	119	146	176	298
	6	51	141	184	242
15 and 23	0*	–	–	–	–
	1	80	142	196	293
	2	135	170	200	310
	3	49	169	200	244
	4	66	140	200	257
	5	62	145	180	280
	6	79	153	197	272
	*0 indicates universal keying arrangement and is available on commercial equivalent plug connector only.

FIBER OPTIC TERMINI MIL-T-29504

The M29504/14 & /15 are qualified to MIL-PRF-29504B specifications. This series of fiber optic termini are compatible with the M28876 and comparable military-style connectors. They provide excellent optical, mechanical, and environmental performance.

TICC Dash Number
M29504 / 14-XXXX Pin Terminus				M29504 / 15-XXXX Pin Terminus
Multimode	Single Mode	Multimode (short)	Single Mode (short)	Multimode	Single Mode	Multimode (short)	Single Mode (short)	Maximum Fiber Diameter (Microns)
4131	4141	4151	4161	4171	4181	4191	4201	126
4135	4145	4155	4165	4175	4185	4195	4205	142
